HF-Anlagen ARES
Maschine: Injektoren und Injektion

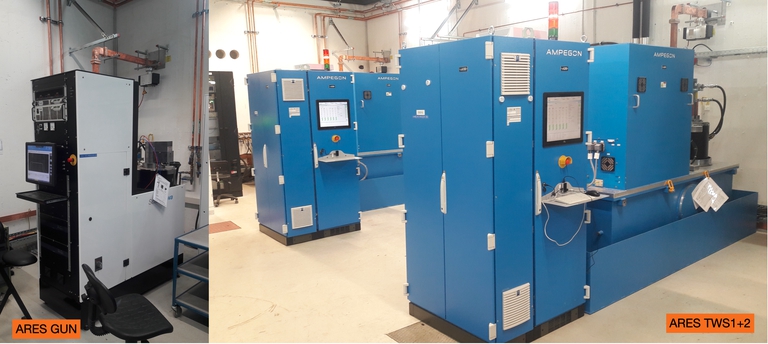

HF-Anlagen ARES
- 3 HF-Stationen (S-Band)
- 2 HF-Stationen (X-Band) für POLARIX-TDS
|
Anlage |
Frequenz |
Leistung |
Pulslänge |
Rep-Rate |
Klystrontyp |
Modulator |
Kompression |
|---|---|---|---|---|---|---|---|
|
GUN |
S-Band |
7,5 MW |
4µs |
10 Hz |
Toshiba E37326 |
Scandinova, IGBT |
ohne |
|
TWS1 |
S-Band |
45MW |
4µs |
10 Hz |
Toshiba E37326 |
Ampegon, IGBT |
ohne |
|
TWS2 |
S-Band |
45MW |
4µs |
10 Hz |
Toshiba E37326 |
Ampegon, IGBT |
ohne |
|
TDS1 |
X-Band |
7MW |
1µs |
10 Hz |
CPI |
Ampegon, IGBT |
BOC |
|
TDS2 |
X-Band |
7MW |
1µs |
10 Hz |
CPI |
Ampegon, IGBT |
BOC |
ARES

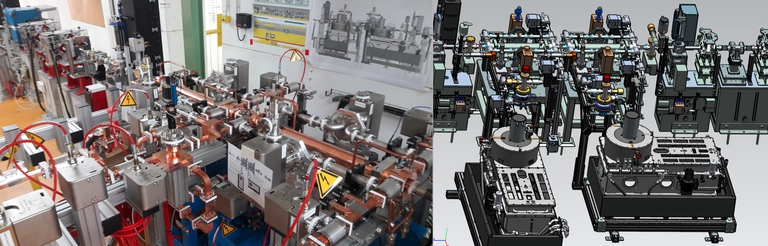

X-Band TDS @ ARES
